Features

The overcurrent protection characteristics have been optimised for motor protection in order to prevent malfunctions due to the high current (starting current) that occurs when starting the motor.

Ratings and specifications

Frame A	Types	Number of poles	Rated current [A]	Rated operation voltage [V]	Rated breaking capacity [kA] Icu (AC415V)	Operation	Rated sensitivity current [mA]	Max. operating time [sec]	Outline dimensions [mm] (WxHxD)	Weight [Kg]	Details
30	ZE30-NM	3	1.4,2.6,4,5,8,10,16,24,32	AC100-200 common	1.5	Instantaneous tripping type	30	0.1	75×100×60	0.5
							100
30	ZS30-NM	3	0.7,1.4,2,2.6,4,5,8,10,12,16,24,32	AC100-440 common	2.5	Instantaneous tripping type	30	0.1	75×100×60	0.5
							100/200/500 sedlectable
50	ZE50-NM	3	45	AC100-440 common	2.5	Instantaneous tripping type	30	0.1	75×100×60	0.5
							100/200/500 sedlectable
50	ZS50-CM	3	0.7,1.4,2,2.6,4,5,8, 10,12,16,24,32,40,45	AC100-440 common	7.5	Instantaneous tripping type	30	0.1	75×100×60	0.5
							100/200/500 sedlectable
100	ZE100-NM	3	60,75,90	AC100-440 common	10	Instantaneous tripping type	30	0.1	75×100×60	0.5
							100/200/500 sedlectable

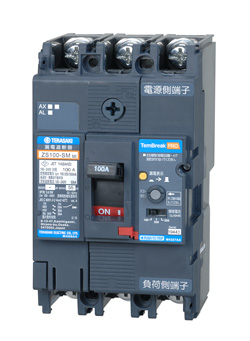

100	ZS100-SM	3	16,24,32,40,45,60,75,90,100	AC100-440 common	30	Instantaneous tripping type	30	0.1	75×130×68	0.95
							100/200/500 sedlectable
225	ZS250-SM	3	125,150,175,225	AC100-440 common	40	Instantaneous tripping type	30	0.1	105×165×68	1.7
							100/200/500 sedlectable
