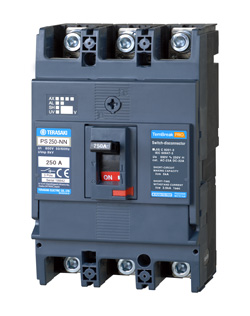

Switch-disconnectors

Switch with suitability for isolation in frames from 30 A to 1600A.

Product Catalog

Inquiries for products

Ratings and specifications

Frame A Types Number of
Poles		 Rated current [A] Rated operational voltage Rated short circuit
making capacity
Icm [kA peak]		 Rated short time
withstand current
Icw [kA]		 Utilization category
IEC60947-3		 Upstream
breaker
(OPCD)		 Outline dimensions [mm]
(WxHxD)		 Weight
[Kg]		 Details
30 PE30-NN 2 30 AC415V 1.5 1 (1sec) AC-23A PE30-NF 50×130×68 0.5
3 75×130×68 0.7
50 PE50-NN 2 50 AC500V,DC250V 1.5 1 (1sec) AC-23A, DC-22A PE50-NF 50×130×68 0.5
3 AC500V AC-23A 75×130×68 0.7
100 PE125-NN 2 100 AC500V,DC250V 2.13 1.5 (0.3sec) AC-23A, DC-22A PE50-NF 50×130×68 0.5
3 AC500V AC-23A 75×130×68 0.7
125 2 125 AC500V,DC250V 2.13 1.5 (0.3sec) AC-23A, DC-22A PE50-NF 50×130×68 0.5
3 AC500V AC-23A 75×130×68 0.7
100 S125-SN 3 100 AC690V 2.8 2 (0.3sec) AC-23A S125-SF 75×130×68 0.7
4 DC250V DC-22A 100×130×68 0.9
125 3 125 AC690V 2.8 2 (0.3sec) AC-23A S125-SF 75×130×68 0.7
4 DC250V DC-22A 100×130×68 0.9
100 PS125-NN 3 100 AC690V 2.8 2 (1sec) AC-23A PS125-NF 90×130×68 1.0
4 DC250V DC-22A 120×130×68 1.3
125 3 125 AC690V 2.8 2 (1sec) AC-23A PS125-NF 90×130×68 1.0
4 DC250V DC-22A 120×130×68 1.3
225 S250-SN 3 225 AC690V 6 3 (0.3sec) AC-23A E250-SF 105×165×68 1.5
4 DC250V DC-22A 140×165×68 1.9
250 3 250 AC690V 6 3 (0.3sec) AC-23A E250-SF 105×165×68 1.5
4 DC250V DC-22A 140×165×68 1.9
225 S250-NN 3 225 AC690V 5 3 (0.3sec) AC-23A PS250-NF 105×165×68 1.5
4 DC250V DC-22A 140×165×68 2.0
250 3 250 AC690V 5 3 (0.3sec) AC-23A PS250-NF 105×165×68 1.5
4 DC250V DC-22A 140×165×68 2.0
400 PS400-NN 3 400 AC690V 7.6 5 (1sec) AC-23A PS400-NF 140×260×103 5.4
4 DC250V DC-22A 185×260×103 7.2
600 PS630-NN 3 600 AC690V 13 7.6 (1sec) AC-22A PS630-NF 140×260×103 5.7
4 DC250V DC-22A 185×260×103 7.7
600 S630-GN 3 600 AC690V 17 10 (0.3sec) AC-23A S630-NF 210×273×103 8.0
4 DC250V DC-22A 280×273×103 11.0
630 S630-GN 3 630 AC690V 17 10 (0.3sec) AC-23A S630-NF 210×273×103 8.0
4 DC250V DC-22A 280×273×103 11.0
800 S800-NN 3 800 AC690V 17 10 (0.3sec) AC-23A S800-NF 210×273×103 8.5
4 DC250V DC-22A 280×273×103 11.5
1000 S1000-NN 3 1000 AC690V 17 10 (0.3sec) AC-23A S1000-CE 210×273×103 10.4
4 DC250V DC-22A 280×273×103 14.0
1250 S1250-NN 3 1250 AC690V 32 15 (0.3sec) AC-23A S1250-NE 210×370×120 18.2
4 DC250V DC-22A 280×370×120 23.4
1600 S1600-NN 3 1600 AC690V 45 20 (0.3sec) AC-23A S1600-NE 210×370×140 24.9
4 DC250V DC-22A 280×370×140 32.9
