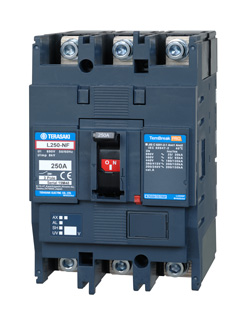

Current limiting series

Circuit breakers with breaking capacity of 200 kA(415 V AC) in frames from 100 A to 800A.

Product Catalog

Inquiries for products

Ratings and specifications

Frame A Types Number of
Poles		 Rated current [A] Rated braking capacity [kA]
Icu/Ics (AC415V)		 Outline dimensions [mm]
(WxHxD)		 Weight
[Kg]		 Details
100 L100-NF 3 15,20,30,40,50,60,75,100 200/150 105×165×103 2.4
4 140×165×103 3.2
125 L125-NF 3 125 200/150 105×165×103 2.4
4 140×165×103 3.2
225 L225-NF 3 125,150,175,200,225 200/150 105×165×103 2.4
4 140×165×103 3.2
250 L250-NF 3 250 200/150 105×165×103 2.4
4 140×165×103 3.2
400 L400-NE 3 125,150,175,200,225,250(Adjustable) 200/150 140×260×140 7.1
4 175,200,225,250,300,350,400 (Adjustable) 185×260×140 9.4
630 L630-NE 3 250,300,350,400,500,600,630 (Adjustable) 200/150 210×273×140 13.5
4 280×273×140 19.6
800 L800-NE 3 350,400,450,500,600,700,800 (Adjustable) 200/150 210×273×140 14.3
4 280×273×140 20.3
