Durable computer interface designed for ocean-going environments. It is installed in many marine systems, including the display computer of our Integrated Control & Monitoring System, TERANET50X
| Item | Marine Computer Ⅱ | Marine Computer mini | Marine Panel Computer |
|---|---|---|---|

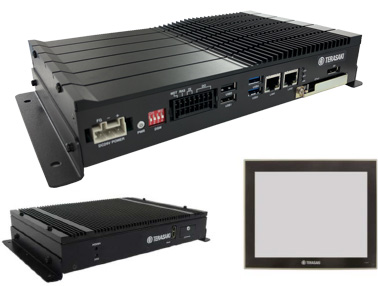

| Appearance |  |
 |
 |
| Type | EMB-7040-8G | EMB-7050 | EMB-7060 |
| OS | Windows® 10 IoT Enterprise 2019 LTSC (64bit) |
Windows® 10 IoT Enterprise 2016 LTSB (64bit) | |
| CPU | Intel® Core™ i7 Dual Core | Intel® Atom™ Quad Core | |
| Memory | 8GB | 4GB | |
| Storage | SSD 60GB / C-Fast Slot x1 | SSD 64GB (Removable) | |
| Serial | RS232C ( 9-pin D-Sub ) x2 | RS232C ( 9-pin D-Sub ) x1 | |
| USB | USB2.0 x6, USB3.0 x2 | USB2.0 x2, USB3.0 x1 | |
| Ethernet | 10/100/1000Base-T x2 | ||
| Graphic | DVI-D x1 , DVI-I x1 | DVI-D x1 , HDMI x1 | DVI-D x1 |
| DI / DO | DI x2, DO x4, RAS Output | ------------------------- | |
| Resolution | MAX. 1920 x 1200 (WUXGA) | LCD : 15" TFT 1024 x 768 (XGA) DVI-D : MAX. 1920 x 1200 (WUXGA) |
|
| Touch panel | ------------------------- | Resistive multi-touch type | |
| Operating environment |
0 ~ 55℃ / 96% Non Condensing | ||
| Input voltage / Consumption (Max) |
24VDC / 40W | 24VDC / 36W | 24VDC / 44W |
| Weight (kg) | 6.0 | 2.1 | 4.7 |
| Dimensions (mm)※1 | 330(W) x 90(H) x 250(D) | 248(W) x 43(H) x 180(D) | 370(W) x 300(H) x 66(D) |
| RAS | Watchdog timer, CPU temperature rise detection, Internal temperature detection, Internal voltage detection |
||
| Certificate | NK, ABS, DNV GL, BV, CCS, LR | ||
| Appearance | |
| Type | EMB-7040-8G |
| OS | Windows® 10 IoT Enterprise 2019 LTSC (64bit) |
| CPU | Intel® CoreTM i7 Dual Core |
| Memory | 8GB |
| Storage | SSD 60GB / C-Fast Slot x1 |
| Serial | RS232C ( 9-pin D-Sub ) x2 |
| USB | USB2.0 x6, USB3.0 x2 |
| Ethernet | 10/100/1000Base-T x2 |
| Graphic | DVI-D x1 , DVI-I x1 |
| DI / DO | DI x2, DO x4, RAS Output |
| Resolution | MAX. 1920 x 1200 (WUXGA) |
| Operating environment | 0 ~ 55℃ / 96% Non Condensing |
| Input voltage | 24VDC / 40W |
| Weight (kg) | 6 |
| Dimensions (mm)※1 | 330(W) x 90(H) x 250(D) |
| RAS | Watchdog timer, CPU temperature rise detection, |
| Internal temperature detection, Internal voltage detection | |
| Certificate | NK, ABS, DNV GL, BV, CCS, LR |
| Appearance | |
| Type | EMB-7050 |
| OS | Windows® 10 IoT Enterprise 2016 LTSB (64bit) |
| CPU | Intel® Atom TM Quad Core |
| Memory | 4GB |
| Storage | SSD 64GB (Removable) |
| Serial | RS232C ( 9-pin D-Sub ) x1 |
| USB | USB2.0 x2, USB3.0 x1 |
| Ethernet | 10/100/1000Base-T x2 |
| Graphic | DVI-D x1 , HDMI x1 |
| Resolution | MAX. 1920 x 1200 (WUXGA) |
| Operating environment | 0 ~ 55℃ / 96% Non Condensing |
| Input voltage / Consumption (Max) | 24VDC / 40W |
| Weight (kg) | 2.1 |
| Dimensions (mm)※1 | 248(W) x 43(H) x 180(D) |
| RAS | Watchdog timer, CPU temperature rise detection, |
| Internal temperature detection, Internal voltage detection | |
| Certificate | NK, ABS, DNV GL, BV, CCS, LR |
| Appearance | |
| Type | EMB-7060 |
| OS | Windows® 10 IoT Enterprise 2016 LTSB (64bit) |
| CPU | Intel® Atom TM Quad Core |
| Memory | 4GB |
| Storage | SSD 64GB (Removable) |
| Serial | RS232C (9-pin D-Sub) x1 |
| USB | USB2.0 x2, USB3.0 x1 |
| Ethernet | 10/100/1000Base-T x2 |
| Graphic | DVI-D x1 |
| Resolution | LCD : 15" TFT 1024 x 768 (XGA) |
| DVI-D : MAX. 1920 x 1200 (WUXGA) | |
| Touch panel | Resistive multi-touch type |
| Operating environment | 0 ~ 55℃ / 96% Non Condensing |
| Input voltage / Consumption (Max) | 24VDC / 44W |
| Weight (kg) | 4.7 |
| Dimensions (mm)※1 | 370(W) x 300(H) x 66(D) |
| RAS | Watchdog timer, CPU temperature rise detection, |
| Internal temperature detection, Internal voltage detection | |
| Certificate | NK, ABS, DNV GL, BV, CCS, LR |
