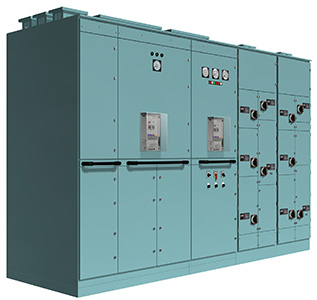

ARC PROOF LOW-VOLTAGE SWITCHGEAR & CONTROLGEAR APS22

APS22 is a switchboard and group starter panel, which has withstanding ability against arc flush in low voltage system.
APS22 protects vessel crews and important devices from serious danger by arc flash.

Product Catalog

Inquiries for products

Features

Arcing due to internal fault tested
Arcing due to internal fault tested

Marine Industry's First

  • After type testing based on the internationally applied standard IEC TR61641
  • ASP22 has acquired LR certification.
Internal Arc Fault
Internal Arc Fault

World highest level of Arc Fault Protection

  • Personal and system protection against internal short circuits or internal arc fault are maintained at the maximum possible level.
Form 4a

Separation arrangement

  • The Forms of internal separation IEC61439-1: Form 3b and Form 4b are available.

Specification

The type varies depending on the busbar current.

  APS22-20 APS22-40 APS22-50
Standard IEC Pub.60092 series, JIS, JEM
IEC 61439-1&2, IEC TR61641
Ship classification societies LR / NK / ABS / DNV / GL / BV
Rated operational societies 450V AC
Rated frequency 50/60Hz
Rated short-time withstand current 100kA 1sec
Rated peak withstand current 240kA
Internal Arc withstand current 100kA 0.5sec
Degree of protection IP22 / IP23
Cable entrance Bottom
Access Front & Back
Busbar current
Generator panel / Incoming panel / Bus-tie panel / Outgoing panel(ACB)		 Horizontal 2000A 4000A 5000A
Vertical 2100A / 2380A / 4000A / 5000A
Busbar current
Outgoing panel(MCCB & Starter) 		Horizontal 2000A 4000A 5000A
Vertical 1310A / 2100A
Applicable motor capacity(440V AC) Draw-out unit Up to 90kW
Fixed unit Up to 185kW
APS22-20
Horizontal current 2000A
APS22-40
Horizontal current 4000A
APS22-50
Horizontal current 5000A
Common
Applications
Standard IEC (pub.60092 series), JIS, JEM
Ship Classification Societies ABS, DNV GL, LR, NK
Ratings
電圧 450V AC
周波数 50/60Hz
Vertical current
（Generator panel, Incoming panel, Bus-tie panel,
Outgoing panel(ACB)）		 2100A / 2380A / 4000A / 5000A
Vertical current
Outgoing panel(MCCB & STARTER)		 1310A / 2100A
短時間耐電流 100kA 1sec
ピーク耐電流 240kA
Internal Arc withstand current 100kA 0.5sec
Constructions
Degree of protection IP22 / IP23
Cable entrance Bottom
Access Front & Back
Applicable motor capacity(440V AC)
Draw-out unit Up to 90kW
Fixed unit Up to 185kW

Dimension

Dimensions vary depending on the panel type.

Panel Type Type H（mm） D（mm） W（mm）
Generator panel APS22-20/40 2200 1100 700/800
APS22-50 2300 1500
Incoming panel APS22-20/40 2200 1100 900/1100
APS22-50 2300 1500
Bus-tie panel APS22-20/40 2200 1100 1300/1500
APS22-50 2300 1500
Outgoing panel
(ACB)		 APS22-20/40 2200 1100 700
APS22-50 2300 1500
Outgoing panel APS22-20/40 2200 900
APS22-50 2300
Starter panel APS22-20/40 2200
APS22-50 2300
Generator panel
APS22-20, 40
H(mm) 2200
D(mm) 1100
W(mm) 700 / 800
APS22-50
H(mm) 2300
D(mm) 1500
W(mm) 700 / 800
Incoming panel
APS22-20, 40
H(mm) 2200
D(mm) 1100
W(mm) 900 / 1100
APS22-50
H(mm) 2300
D(mm) 1500
W(mm) 900 / 1100
Bus-tie panel
APS22-20, 40
H(mm) 2200
D(mm) 1100
W(mm) 1300 / 1500
APS22-50
H(mm) 2300
D(mm) 1500
W(mm) 1300 / 1500
Outgoing panel(ACB)
APS22-20, 40
H(mm) 2200
D(mm) 1100
W(mm) 700
APS22-50
H(mm) 2300
D(mm) 1500
W(mm) 700
Outgoing panel(MCCB & STARTER)
APS22-20, 40
H(mm) 2200
D(mm) 900
W(mm) 700
APS22-50
H(mm) 2300
D(mm) 900
W(mm) 700
