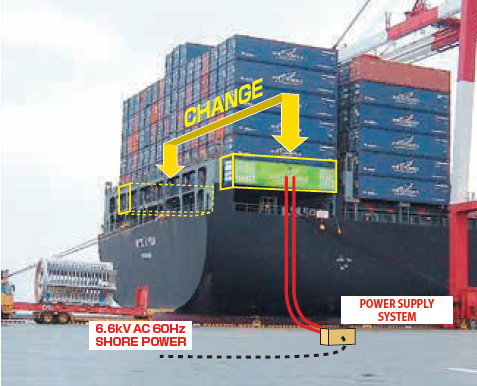

Environmental concerns have become an important public issue, and the shipping industry has also been taking various measures. TERASAKI Shore Connection keeps off the ship's generating engines while in harbor and receives necessary power from shore. It helps minimize environmental pollutants from the ship and keep the harbor clean.

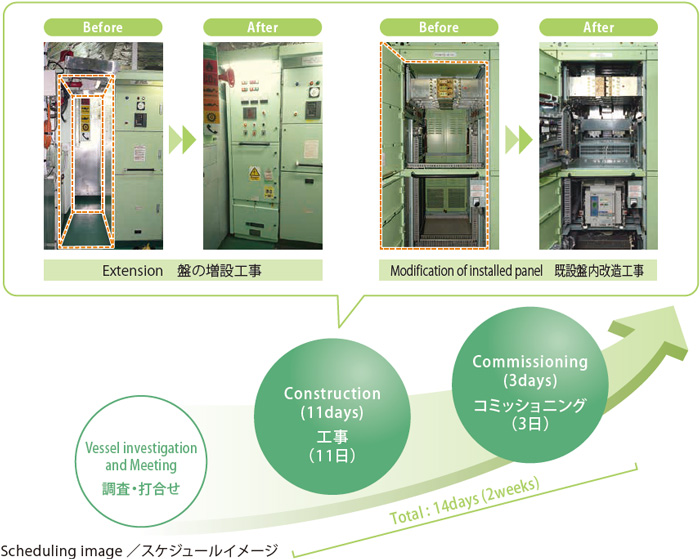

Modifications to other brands of power distribution panel
We have engineers who can correspond to inquiry about shore connection system in California state, power receiving test and urgent response stationed in Los Angeles on the West Coast of the USA.
Contact
TERATEC (USA) INC
21151 S.Western Avenue, Suite 214, Torrance,CA 90501,USA.
Tel: +1 310 755 2517
E-Mail: teratec.usa@gmail.com
This is the general specification.
Options are available. For details, please refer to the catalog or contact us through the inquiry form.
| Specification | Mobile Container Type | Fixed Type | |
|---|---|---|---|
| Standard | IEC/ISO/IEEE 80005-1 | ||
| Classification | ABS/DNV GL/LR/NK/BV and others | ||
| Supply voltage | Shore side | 6.6kV AC | |
| Ship side | 6.6kV AC， 450V AC | ||
| Supply frequency Shore side / Ship side | 60Hz ※1 | ||
| Power changing method | Blackout-free | ||
| Ship needed power | 6MW / 8MW | ||
| ApplicationMobile | Container Type | Fixed Type | |
|---|---|---|---|
| Cable connection | 2 cables | 2 cables | |
| Cable operation | Shore side / Ship side | 1 person | 1 person |
| Cable plug / socket | One-touch | One-touch | |
| Power changing | One-push | One-push | |
| Equipment loading onto in-service ship ※2 | ○ | △ | |
| Compatibility with either side of ship ※3 | ○ | △ | |
| High-voltage shore connection panel | HS21 | HS21 | |
| Ship-to-Shore communication | Serial communications （Optical fiber） |
Serial communications （Optical fiber） |
|
| Detection circuit for removed high-voltage connector | ○ | ○ | |
| Automatic tension control ※4 | ○ | ○ | |
| Automatic power recovery system ※5 | ○ | ○ | |

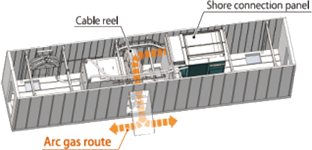

| Countermeasures against high-voltage arcing accident | ○ | ○ | |
| Countermeasures against high-voltage arcing accident | 32m（MAX） | 55m（MAX） | |
| Sharing with other ships | ○ | ̶ | |

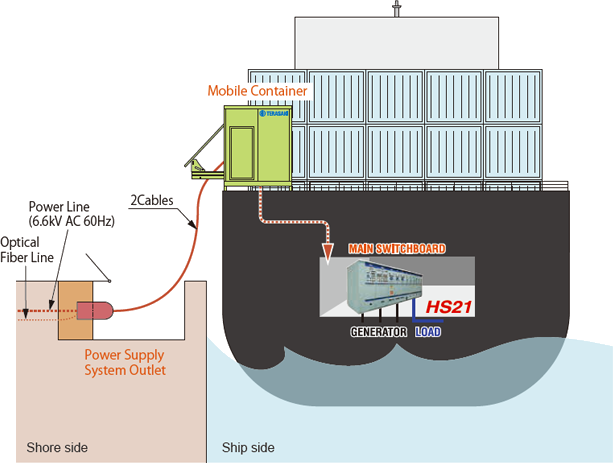

| Mobile Container Specification | ||||
|---|---|---|---|---|
| Installation | Both sides (Port side and Starboard side) | |||
| Certification for container (tests) |
Certified by CSC (Watertight test, Strength test) |
|||
| Container size | 40 Feet | |||
| Container dimension（mm） | Height：2,896 | Width：2,438 | Length：12,192 | |
| Weight（kg） | Approx.13,000 | |||
| Type（Material） | Reefer container（Stainless steel） | |||
| Container stacking | Up to 9 containers can be stacked. | |||
| Connection work | Connection between ships | One-touch connection of cables reeled out from lower part of container |
||
| Connection between shore | One-touch connection of cables reeled out from a side of container |
|||
| Power receiving warning lamp | Equipped on a side of container | |||
| Ventilation | Natural ventilation | |||
| Container door | Both sides | |||
| Fire prevention / Emergency evacuation equipment | Fire extinguisher, smoke detector / Emergency exit | |||
| Standard | IEC/ISO/IEEE 80005-1 |
| Classification | ABS/DNV GL/LR/NK/BV and others |
| Supply voltage（Shore Side) | 6.6kV AC |
| Supply voltage（Ship Side) | 6.6kV AC，450V AC |
| Supply frequency Shore side / Ship side | 60Hz ※1 |
| Power changing method | Blackout-free |
| Ship needed power | 6MW / 8MW |
| Cable connection | 2 cables |
| Cable operation Shore side / Ship side | 1 person |
| Cable plug / socket | One-touch |
| Power changing | One-push |
| Equipment loading onto in-service ship ※2 | ○ |
| Compatibility with either side of ship ※3 | ○ |
| High-voltage shore connection panel | HS21 |
| Ship-to-Shore communication | Serial communications （Optical fiber） |
| Detection circuit for removed high-voltage connector | ○ |
| Automatic tension control ※4 | ○ |
| Automatic power recovery system ※5 | ○ |
| Countermeasures against high-voltage arcing accident | ○ |
| Effective length of cable from ship to shore | Max. 32m (Container Type) Max. 55m (Fixed Type) |
| Sharing with other ships | ○ (Only Container Type) |
| Installation | Both sides (Port side and Starboard side) |
| Certification for container | Certified by CSC |
| (tests) | (Watertight test, Strength test) |
| Container size | 40 Feet |
| Container dimension（mm） | H2,896 × W2,438 × D12,192 |
| Weight（kg） | Approx.13,000 |
| Type（Material） | Reefer container（Stainless steel） |
| Container stacking | Up to 9 containers can be stacked. |
| Connection between ships | One-touch connection of cables reeled out from lower part of container |
| Connection between shore | One-touch connection of cables reeled out from a side of containe |
| Power receiving warning lamp | Equipped on a side of container |
| Ventilation | Natural ventilation |
| Container door | Both sides |
| Fire prevention / Emergency evacuation equipment | Fire extinguisher, smoke detector / Emergency exit |
