GROUP STARTER PANEL GS22

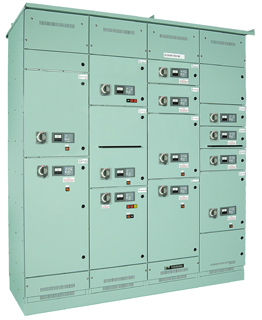

The GS22 controls and protects onboard motors. As a product, it improves safety, reliability and operability while delivering environmental friendliness and flexible design.

Product Catalog

Inquiries for products

Features

Safety & Reliability

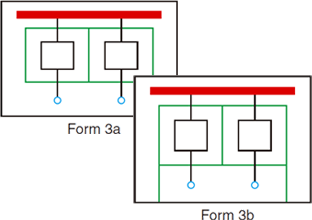

  • Compliant with IEC61439-2, Form 3a and Form 3b

Ecology

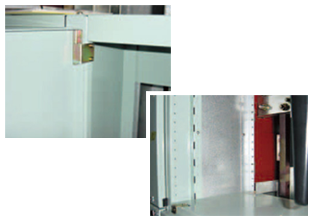

  • Weld-free construction facilitates disassembly
  • Extensive use of galvanized steel sheets inside panels

Easy Maintenance

  • Improved maintainability and ease of inspection has been built in, by using cable connectors for control wires.
  • Locking mechanism keeps connectors from being dislodged.

Specifications

This is the specification of the standard board.
Options are available. For details, please refer to the catalog or contact us through the inquiry form.

type
Grouped Front access type(GS22F), Rear access type(GS22B), Withdrawable type(GS22D), Wall mount type(GS22A)
Individual starter Wall mount type(Box type), Self standing type
Applications
Standard IEC(pub.60092 series), JIS, JEM
Ship Classification Societies ABS,DNV,LR,NK
Ambient temperature 0~45℃
Ratings
Rated voltage 440V AC
Control voltage 24V DC, 220V AC
Rated frequency 60Hz
Busbar short circuit current 75kA
Withstand voltage Main circuits 2,200V / 2,500V AC / 1min
Control circuits 1,500V AC / 1min (except printed circuits modules)
Constructions
Degree of Protection IP22
Standard paint color 7.5BG 7/2 semi-polished
Cable entrance Bottom
Starter units
Applicable motor capacity(440V) GS22F/B ~180kW
GS22A/D ~90kW
Maximum unit size(GS22D) Max. 800mm
Specifications
Types
Grouped type Front access type(GS22F)
Rear access type(GS22B)
Wall mount type(GS22A)
Withdrawable type(GS22D)
Individual starter Wall mount type(Box type)
Self standing type
Applications
Standard IEC(pub.60092 series), JIS, JEM
Ship Classification Societies ABS, DNV GL, LR, NK
Ambient temperature 0~45℃
Ratings
Rated voltage 440V AC
Control voltage 24V DC, 220V AC
Rated frequency 60Hz
Busbar short circuit current 75kA
Withstand voltage(Main circuits) 2,200V / 2,500V AC / 1min
Withstand voltage(Control circuits) 1,500V AC / 1min (except printed circuits modules)
Constructions
Degree of Protection IP22
Standard paint color 7.5BG 7/2 semi-polished
Cable entrance Bottom
Starter units
Applicable motor capacity(440V) ~180kW(GS22F/B)
~90kW(GS22A/D)
Maximum unit size(GS22D) Max. 800mm

Dimension

Dimensions per cell of standard board. Dimensions vary depending on the panel type.

Type H (mm) D (mm) W (mm)
Front access type(GS22F) 2000 / 2200 / 2300 425 / 475 500 / 550
Rear access type(GS22B) 800 500 / 550
Withdrawable type(GS22D) 750 450
Wall mount type(GS22A) 400 500 / 550
Front access type(GS22F)
W (mm) 500, 550
D (mm) 425, 475
H (mm) 2000, 2200, 2300
Rear access type(GS22B)
W (mm) 500, 550
D (mm) 800
H (mm) 2000, 2200, 2300
Wall mount type(GS22A)
W (mm) 500, 550
D (mm) 400
H (mm) 2000, 2200, 2300
Withdrawable type(GS22D)
W (mm) 450
D (mm) 750
H (mm) 2000, 2200, 2300
