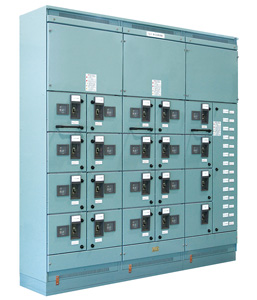

GROUP STARTER PANEL GS50

The GS50 controls and protects onboard motors, and is equipped with space saving in the ship, improved operational efficiency / maintainability and enhanced safety.

Product Catalog

Inquiries for products

Features

Wide wiring space

Customer Friendly

  • Wide wiring space
  • Accidental touch prevention
  • Enhanced work efficiency
  • Wire harnesses appllcation In the unit
  • Quick delivery
Vibration test based on IEC requirement

Safety & Reliability

  • Compliant with IEC61439-2, Form 3a and 3b
  • Using special tightening nut for main conductive part
  • Inherits proven technologies
  • CE marking (EMC directive) compliance
  • Applicable MCCB replacement without black-out


Intelligent

  • Applied PLCs for control circuits
  • Easy to change unit specification by software modification
  • Available MCCB with electric power monitoring function
  • Providing Panel interlocking device
  • Applicable Type 2 coordination
Smart breaker TemBreak PRO

Specifications

This is the specification of the standard board.
Options are available. For details, please refer to the catalog or contact us through the inquiry form.

Types
Grouped type Front access type(GS50F),Rear access type(GS50B),Wall mount type(GS50A),Withdrawable type(GS50D)
Individual type Self standing type,Wall mount type
Applications
Standard IEC Pub.60092 series, JIS, JEM IEC 61439-1&2
Ship Classification Societies NK, JG, LR, ABS, DNV GL, BV, CCS
Ambient temperature 0~45℃
Ratings
Rated voltage 440V AC
Control voltage 24V DC, 220V AC, 110V AC
Rated frequency 50/60 Hz
Rated short-time withstand current GS50B 80kA
GS50D 100kA
Withstand voltage Main circuits 2,200V / 2,500V AC / 1min
Control circuits 1,500V AC / 1min (except printed circuits modules)
Constructions
Degree of Protection IP22
Standard paint color 7.5BG 7/2 semi-polished
Cable entrance Bottom
MCCB operation GS50F/B/A External operationg handle
GS50D Direct operation
Starter units
Applicable motor capacity(440V) GS50F/B ~180kW
GS50A/D ~90kW
Maximum unit size(GS50D) Max.800mm
Specifications
Types
Grouped type Front access type(GS50F)
Rear access type(GS50B)
Wall mount type(GS50A)
Withdrawable type(GS50D)
Individual type Self standing type
Wall mount type
Applications
Standard IEC Pub.60092 series, JIS, JEM IEC 61439-1&2
Ship Classification Societies NK, JG, LR, ABS, DNV GL, BV, CCS
Ambient temperature 0~45℃
Ratings
Rates voltage 440V AC
Control voltage 24V DC, 220V AC, 110V AC
Rated frequency 50/60 Hz
Rated short-time withstand current 80kA (GS50B)
100kA (GS50D)
Withstand voltage(Main circuits) 2,200V / 2,500V AC / 1min
Withstand voltage(Control circuits) 1,500V AC / 1min (except printed circuits modules)
Construction
Degree of Protection IP22
Standard paint color 7.5BG 7/2 semi-polished
Cable entrance Bottom
MCCB operation External operationg hundle(GS50F/B/A)
Direct operation(GS50D)
Starter units
Applicable motor capacity(440V) ~180kW(GS50F/B)
~90kW(GS50A/D)
Maximum unit size(GS50D) Max. 800mm

Dimension

Dimensions per cell of standard board. Dimensions vary depending on the panel type.

type H (mm) D (mm) W (mm)
Front access type(GS50F) 2,200 400 700 / 1050
Rear access type(GS50B) 2,200 750 700 / 1050
Wall mount type(GS50A) 800 ~ 1,600 400 350 / 700
Withdrawable type(GS50D) 2,200 900 700
Front access type(GS50F)
W (mm) 700, 1050
D (mm) 400
H (mm) 2,200
Rear access type(GS50B)
W (mm) 700, 1050
D (mm) 750
H (mm) 2,200
Wall mount type(GS50A)
W (mm) 350, 700
D (mm) 400
H (mm) 800 ~ 1,600
Withdrawable type(GS50D)
W (mm) 700
D (mm) 900
H (mm) 2,200
