Integrated Control and Monitoring System TERANET50X

TERANET 50X system integrates interchangeable and standard components over a dual loop Ethernet network, which effectively minimizes the impact of equipment. Then, the ship-to shore information sharing platform enables ships and land- based offices to share data with wide range of applications through communication and storage features designed for utilizing " Big Data" base. In addition, the system is put on energy-saving ship and　contributes to global environmental protection by increasing the optimum operating efficiency of the plant.

Product Catalog

Inquiries for products

Features

Distributed System Configuration

The system integrates interchangeable and standard components over a dual loop Ethernet network, which effectively minimizes the impact of equipment faults.

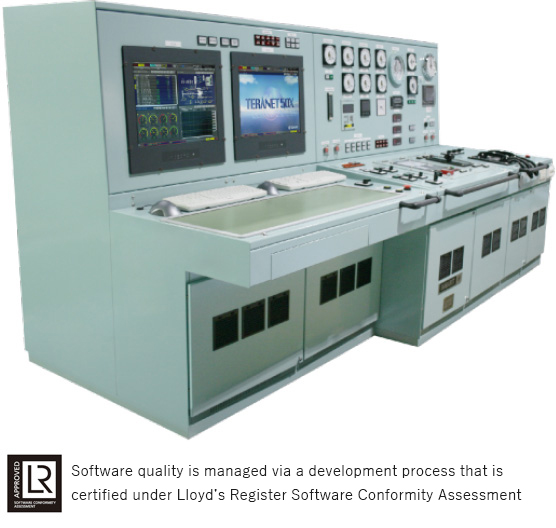

Long-Life Components

Key components and software are developed and made in Japan under stringent quality controls, which ensures durability, high reliability, high quality and long-term supply availability.

Simple & Smart Maintenance

TERANET50X system is designed to ensure the system and plant faults to be easily diagnosed and defective components to be replaced with minimal downtime.

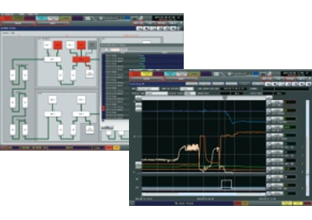

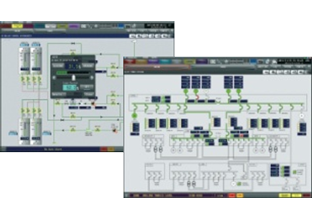

Leading Edge Application

TERANET50X system can be applied as Total Integrated Automation System to integrate and automate engine, machines, cargo and power management by utilizing its controls, arithmetical operations and communication features.

Open Platform

The ship-to-shore information sharing platform enables ships and land-based offices to share data with a wide range of applications through communication and storage features designed for utilizing "Big Data" base.

Distributed System

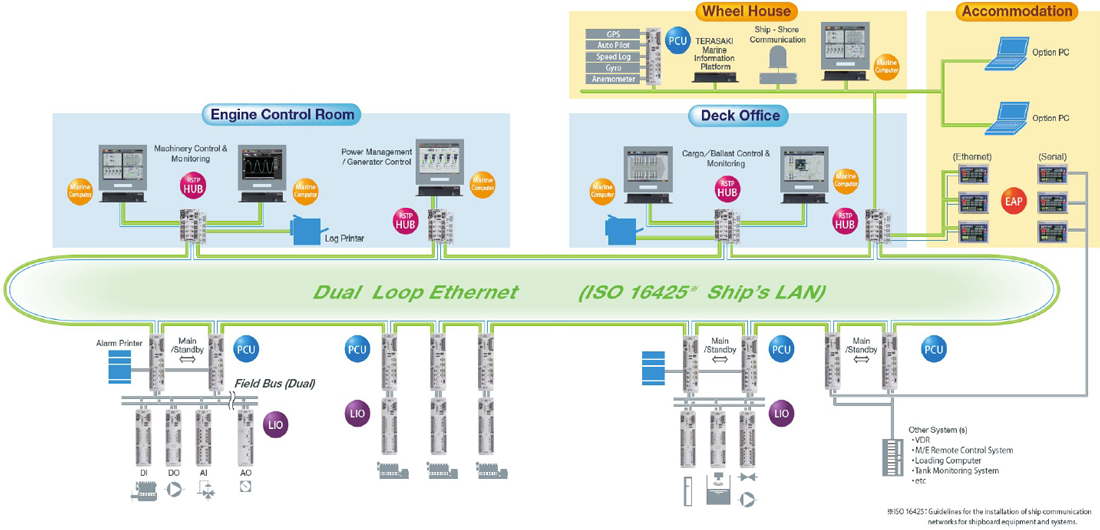

Distributed processing configuration integrates sub-systems over a dual loop Ethernet

Onboard data platform TMIP
A data utilization environment can be created by simply adding a Marine Computer to the TERANET50X
Onboard data platform TMIP

Long-Life Components

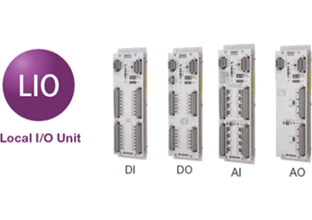

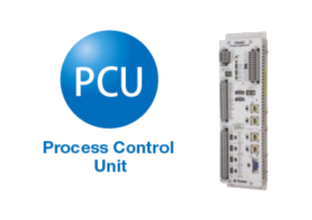

Intelligent controller for monitoring,control and computing

  • Redundancy available for key parts (Main/Standby configuration)
  • Temperature range(-10℃～+70℃)and vibration resistance(4G) allow direct mounting on engines.

15 selectable I/O signals condensed into 4local I/O units.

  • Earth fault detection on all I/O channels.
  • Temperature range(-10℃～+70℃)and vibration resistance(4G) allow direct mounting on engines.
  • Universal analog input unit with 11-signal support.

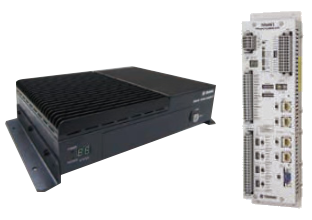

Durable computer interface designed for ocean-going environments

  • Maintenance-free design with no use of life-limited fans, HDD or batteries.
  • Available for widescreen.
Marine Computer Series

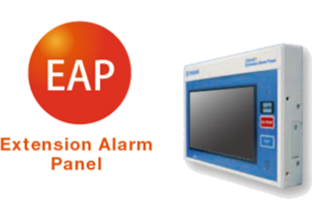

Extension alarm panels with 7-inch color LCD touch screen

  • Automatic dimmer that reacts to surrounding brightness.(Only EAP)
  • Available in Ethernet or serial communication architecture.(Only EAP)

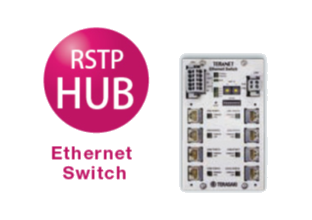

Easy-to-connect managed Ethernet switches

  • Advanced self-diagnostics for identifying disconnections.
  • RSTP topology to ensure loop connections.

Specifications

System Specification

System Architecture Distributed System
Max I/O Points 5000 Points
Minimum Sampling Interval 20ms
Max VDUs 64
Max PCUs 64
Network Loop Ethernet, Dual
Serial Communication Ports 4 Ports×PCUs
Serial Communication Protocol IEC 61162, Modbus Ascii／RTU, User defined
Type Approval ABS, BV, CCS, DNV GL, LR, NK

PCU

Power Supply,Power Consumption DC24V(18V～31.2V),8W Typ
Operating Temperature & Humidity -10℃～＋70℃, 96%RH Non Condensing
Dimensions（mm） 100(W)×360(H)×43(D)
Vibration Resistance 4G
Fieldbus I/F Fieldbus Port ×2（Dual）×2
Ethernet I/F 10/100Base-T×2
Serial I/F RS485x４, RS232C×1
General I/O DI×３, DO×３

LIO（DI,DO,AI,AO）

Power Supply,Power Consumption DC24V(18V～31.2V), 6～16W Typ
Operating temperature & humidity -10℃～＋70℃, 96%RH Non Condensing
Dimensions（mm） 100(W)×360(H)×43(D)
Vibration Resistance 4G
Fieldbus I/F Fieldbus Port ×2（Dual）
Earth Fault Detection Available
DI Unit(I/O Points) 32ch
DI Unit(Signal Type) Dry Contact
DI Unit(Power Consumption) 6W Typ
DO Unit(I/O Points) 24ch
DO Unit(Signal Type) Relay Output
DO Unit(Power Consumption) 12W Typ
AI Unit(I/O Points) 16ch
AI Unit(Signal Type) Pt100 2-Wire 0-200℃ / 0-800℃
Pt100 3-Wire 0-200℃ / 0-800℃
4-20mA
DC -10～+10V / 0～5V / 0～2V
Potentiometer 1kΩ / 2kΩ
Dry Contact w/Short Circult＆Wire Break Detection
AI Unit(Power Consumption) 16W Typ
AO Unit(I/O Points) 8ch
AO Unit(Signal Type) 4-20mA
DC 0～5V
AO Unit(Power Consumption) 16W Typ

Marine Computer

Power Supply,Power Consumption DC24V(18V～31.2V), 40W Max
Operating temperature & humidity 0℃～+55℃, 96%RH Non Condensing
Dimensions（（mm） 390(W)×90(H)×250(D)
Standard Display 21.3" LCD, UXGA（1600x1200）
Input Device Keyboard, Trackball, Touch Panel
Ethernet I/F 10/100/1000BASE-T×2
Other I/F RS-232C×2, USB 2.0×6, USB3.0×2

EAP

Power Supply,Power Consumption DC24V(13.2V～31.2V), 9 . 6W Typ
Operating temperature & humidity 0℃～+55℃, 96%RH Non Condensing
Dimensions（mm） 232(W) × 169(H) × 36.8(D)
Display 7" Colour LCD With Touch Panel
Mounting Wall Mount, Flash Mount
Communcation I/F 10/100BASE-T×2 or RS-485 ×1
Other Functions Auto Alarm Display, Alarm Summary Display
Engineer Call System, Personal Alarm System

RSTP HUB

Power Supply,Power Consumption DC24V(18V～31.2V)×2（Dual） , 6W Typ
Operating temperature & humidity -10℃～+70℃, 96%RH Non Condensing
Dimensions（mm） 100(W) ×200(H) × 52.6(D)
Ethernet I/F 10/100BASE-Tｘ8
Other Function RSTP, SNMP, VLAN, QoS
System Specification
System Architecture Distributed System
Max I/O Points 5000 Points
Minimum Sampling Interval 20ms
Max VDUs 64
Max PCUs 64
Network Loop Ethernet, Dual
Serial Communication Ports 4 Ports×PCUs
Serial Communication Protocol IEC 61162, Modbus Ascii／RTU, User defined
Type Approval ABS, BV, CCS, DNV GL, LR, NK
PCU (Process Control Unit)
Power Supply,Power Consumption DC24V(18V～31.2V),8W Typ
Operating Temperature & Humidity -10℃～＋70℃, 96%RH Non Condensing
Dimensions（mm） 100(W)×360(H)×43(D)
Vibration Resistance 4G
Fieldbus I/F Fieldbus Port ×2（Dual）×2
Ethernet I/F 10/100Base-T×2
Serial I/F RS485x４, RS232C×1
General I/O DI×３, DO×３
LIO (Local Input/Output unit)
LIO Common
Power Supply,Power Consumption DC24V(18V～31.2V), 6～16W Typ
Operating Temperature & Humidity -10℃～＋70℃, 96%RH Non Condensing
Dimensions（mm） 100(W)×360(H)×43(D)
Vibration Resistance 4G
Fieldbus I/F Fieldbus Port ×2（Dual）
Earth Fault Detection Available
DI (Digital Input)
DI Unit(I/O Points) 32ch
DI Unit(Signal Type) Dry Contact
DI Unit(Power Consumption) 6W Typ
DO (Digital Output)
DO Unit(I/O Points) 24ch
DO Unit(Signal Type) Relay Output
DO Unit(Power Consumption) 12W Typ
AI (Analog Input)
AI Unit(I/O Points) 16ch
AI Unit(Signal Type) Pt100 2-Wire 0-200℃ / 0-800℃
Pt100 3-Wire 0-200℃ / 0-800℃
4-20mA
DC -10～+10V / 0～5V / 0～2V
Potentiometer 1kΩ / 2kΩ
Dry Contact w/Short Circult＆Wire Break Detection
AI Unit(Power Consumption) 16W Typ
AO (Analog Output)
AO Unit(I/O Points) 8ch
AO Unit(Signal Type) 4-20mA
DC 0～5V
AO Unit(Power Consumption) 16W Typ
Marine Computer
Power Supply,Power Consumption DC24V(18V～31.2V), 40W Max
Operating Temperature & Humidity 0℃～+55℃, 96%RH Non Condensing
Dimensions（mm） 390(W)×90(H)×250(D)
Standard Display 21.3" LCD, UXGA（1600x1200）
Input Device Keyboard, Trackball, Touch Panel
Ethernet I/F 10/100/1000BASE-T×2
Other I/F RS-232C×2, USB 2.0×6, USB3.0×2
EAP (Extension Alarm Panel)
Power Supply,Power Consumption DC24V(13.2V～31.2V), 9 . 6W Typ
Operating Temperature & Humidity 0℃～+55℃, 96%RH Non Condensing
Dimensions（mm） 232(W) × 169(H) × 36.8(D)
Display 7" Colour LCD With Touch Panel
Mounting Wall Mount, Flash Mount
Communcation I/F 10/100BASE-T×2 or RS-485 ×1
Other Functions Auto Alarm Display, Alarm Summary Display
Engineer Call System, Personal Alarm System
RSTP HUB
Power Supply,Power Consumption DC24V(18V～31.2V)×2（Dual） , 6W Typ
Operating Temperature & Humidity -10℃～+70℃, 96%RH Non Condensing
Dimensions（mm） 100(W) ×200(H) × 52.6(D)
Ethernet I/F 10/100BASE-Tｘ8
Other Function RSTP, SNMP, VLAN, QoS
