Switch with suitability for isolation in frames from 160 A to 1600A.
| Frame A |
Types | Number of poles | Rated current [A] | Rated operational voltage | Rated short circuit making capacity | Rated short time withstand current | Utilization category | Upstream breaker (OCPD) | Outline dimensions [mm] | Weight [kg] |
Details |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Icm [kA peak] | Icw [kA] | (HxWxD) | |||||||||
| 160 | S160-SN | 3 | 160 | AC690V | 2.8 | 2 (0.3sec) | AC-23A | E160-SJ | 75x130x68 | 0.7 |  |
| 4 | DC250V | DC-22A | 100x130x68 | 0.9 | |||||||
| 160 | P160D | 3 | 160 | AC690V | 2.8 | 2 (1sec) | AC-23A | P160F | 90x130x68 | 1.0 | |
| 4 | DC250V | DC-22A | 120x130x68 | 1.3 | |||||||

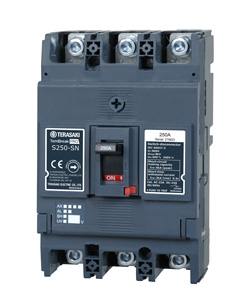

| 250 | S250-SN | 3 | 250 | AC690V | 6 | 3 (0.3sec) | AC-23A | E250-SJ | 105x165x68 | 1.5 | |
| 4 | DC250V | DC-22A | 140x165x68 | 1.9 | |||||||
| 250 | P250D | 3 | 250 | AC690V | 5 | 3.6 (1sec) | AC-23A | P250F | 105x165x68 | 1.5 | |
| 4 | DC250V | DC-22A | 140x165x68 | 2.0 | |||||||
| 400 | P400D | 3 | 400 | AC690V | 7.6 | 5 (1sec) | AC-23A | P400N | 140x260x103 | 5.4 | |
| 4 | DC250V | DC-22A | 185x260x103 | 7.2 | |||||||
| 600 | P630D | 3 | 630 | AC690V | 13 | 7.6 (1sec) | AC-23A | P630N | 140x260x103 | 5.7 | |
| 4 | DC250V | DC-22A | 185x260x103 | 7.7 | |||||||
| 800 | S800-NN | 3 | 800 | AC690V | 17 | 10 (0.3sec) | AC-23A | S800-NJ | 210x273x103 | 8.5 | |
| 4 | DC250V | DC-22A | 280x273x103 | 11.5 | |||||||
| 1000 | S1000-NN | 3 | 1000 | AC690V | 17 | 10 (0.3sec) | AC-23A | S1000-NE | 210x273x103 | 10.4 | |
| 4 | DC250V | DC-22A | 280x273x103 | 14.0 | |||||||
| 1250 | S1250-NN | 3 | 1250 | AC690V | 32 | 15 (0.3sec) | AC-23A | S1250-NE | 210x370x120 | 18.2 | |
| 4 | DC250V | DC-22A | 280x370x120 | 23.4 | |||||||
| 1600 | S1600-NN | 3 | 1600 | AC690V | 45 | 20 (0.3sec) | AC-23A | S1600-NE | 210x370x140 | 24.9 | |
| 4 | DC250V | DC-22A | 280x370x140 | 32.9 |
