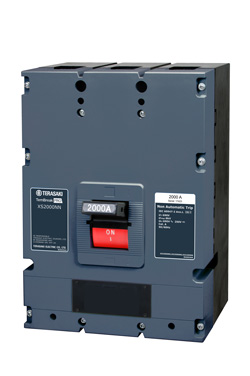

Switch that is removed the overcurrent trip mechanism from molded case circuit breaker.
| Frame A |
Types | Number of poles | Rated current [A] | Rated operation voltage | Rated short circuit making capacity | Rated short time withstand current | Max switching current | Upstream breaker (OCPD) | Outline dimensions [mm] | Weight [kg] |
Details |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Icm [kA peak] | Icw [kA] | (WxHxD) | |||||||||
| 2000 | XS2000NN | 3 | 2000 | AC690V | 90 | 35 (0.3sec) | AC12000A | XS2000NE | 320x450x185 | 51.8 |  |
| 4 | DC250V | DC5000A | 429x450x185 | 64.8 | |||||||
| 2500 | XS2500NN | 3 | 2500 | AC690V | 90 | 35 (0.3sec) | AC15000A | XS2500NE | 320x450x185 | 60.0 | |
| 4 | DC250V | DC6250A | 429x450x185 | 75.7 | |||||||
| 3200 | XS3200NN | 3 | 3200 | AC690V | 90 | 38 (0.5sec) | AC15000A | XS3200NE | 320x450x185 | 60.0 | |
| DC250V | DC6250A |
