Circuit breakers with breaking capacities from 16kA to 25 kA (415 V AC) in frames from 160 A to 630 A.
Over current trip mechanism is fixed type or thermal adjustable type.
| Frame A |
Types | Number of poles | Rated current [A] | Rated breaking capacity [kA] | Outline dimensions [mm] | Weight [kg] |
Fixed thermal |
Adjustable thermal |
Electronic | Details | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Icu/Ics (AC415V) | (WxHxD) | TPOT | TPOP | XOU | XOS | ||||||||
| 160 | E160-SF | 1 | 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 | 25/13 (AC240V) | 25x130x68 | 0.3 | ● | － | － | － | － | － |  |
| 2 | 15, 20, 30, 40, 50, 60, 75, 100, 125, 160 | 16/8 | 50x130x68 | 0.6 | |||||||||
| 3 | 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160 | 16/8 | 75x130x68 | 0.8 | |||||||||
| 4 | 100x130x68 | 1.0 | |||||||||||
| 160 | E160-SJ | 3 | 25, 40, 63, 80, 100, 125, 160 | 16/8 | 75x130x68 | 0.8 | － | ● | － | － | － | － | |
| 4 | 100x130x68 | 1.0 | |||||||||||
| 250 | E250-SCF | 3 | 125, 150, 175, 200, 225, 250 | 16/8 | 105x165x68 | 1.5 | ● | － | － | － | － | － | |
| 4 | 140x165x68 | 1.9 | |||||||||||
| 250 | E250-SCJ | 3 | 100, 125, 160, 200, 250 | 16/8 | 105x165x68 | 1.5 | － | ● | － | － | － | － | |
| 4 | 140x165x68 | 1.9 | |||||||||||

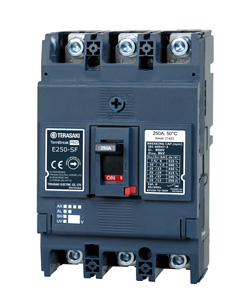

| 250 | E250-SF | 3 | 125, 150, 175, 200, 225, 250 | 25/19 | 105x165x68 | 1.5 | ● | － | － | － | － | － | |
| 4 | 140x165x68 | 1.9 | |||||||||||
| 250 | E250-SJ | 3 | 125, 150, 175, 200, 225 | 25/19 | 105x165x68 | 1.5 | － | ● | － | － | － | － | |
| 4 | 140x165x68 | 1.9 | |||||||||||
| 400 | P400E | 3 | 250, 400 | 25/25 | 140x260x103 | 5.5 | － | ● | － | － | － | － | |
| 4 | 180x260x103 | 7.3 | |||||||||||
| 630 | P630E | 3 | 630 | 25/25 | 140x260x103 | 5.9 | － | ● | － | － | － | － | |
| 4 | 180x260x103 | 7.8 | |||||||||||
