Circuit breakers with breaking capacities 200 kA (415 V AC) in frames from 125A to 800 A.
| Frame A |
Types | Number of poles | Rated current [A] | Rated breaking capacity [kA] | Outline dimensions [mm] | Weight [kg] |
Fixed thermal |
Adjustable thermal |
Electronic | Details | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Icu/Ics (AC415V) | (WxHxD) | TPOT | TPOP | XOU | XOS | ||||||||
| 125 | L125-NJ | 3 | 20, 32, 50, 63, 100, 125 | 200/150 | 105x165x103 | 2.4 | － | ● | － | － | － | － |  |
| 4 | 140x165x103 | 3.2 | |||||||||||
| 160 | L160-NJ | 3 | 160 | 200/150 | 105x165x103 | 2.4 | － | ● | － | － | － | － | |
| 4 | 140x165x103 | 3.2 | |||||||||||
| 250 | L250-NJ | 3 | 160,250 | 200/150 | 105x165x103 | 2.4 | － | ● | － | － | － | － | |
| 4 | 140x165x103 | 3.2 | |||||||||||

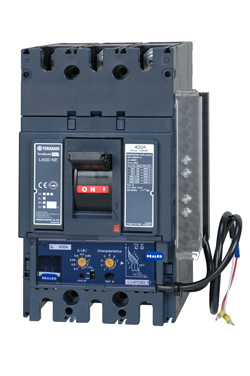

| 400 | L400-NE | 3 | In=250, In=400 | 200/150 | 140x260x140 | 7.1 | － | － | － | － | ● | － | |
| 4 | 185x260x140 | 9.4 | |||||||||||
| 800 | L800-NE | 3 | In=630, In=800 | 200/150 | 210x273x140 | 14.8 | － | － | － | － | ● | － | |
| 4 | 280x273x140 | 18.8 | |||||||||||
